SP30

SP30 is a multi-functional GNSS receiver that integrates AR and laser modules. It has a built-in high-precision positioning module, supporting tracking of satellite signals at all frequency points in the full system. The device is equipped with 4G Full-netcom, Bluetooth, WIFI and a 5W digital radio. Due to the intergration of built-in high-precision inertial navigation module, laser surveying module and AR real scene staking module, SP30 can provide more possibilities for surveying & mapping work.

Receive All Satellite Signals

SP30 integrates high-precision positioning module, configures 1408 high-speed channels, supports BDS B1I, B2I, B3I, B1C, B2a, B2b(PPP-B2b), GPS L1C/A, L1C, L2C, L5, GLONASS L1, L2, L3, Galileo E1, E5a, E5b, E6(PPP-E6), QZSS L1, L2, L5, SBAS and NavIC(IRNSS).

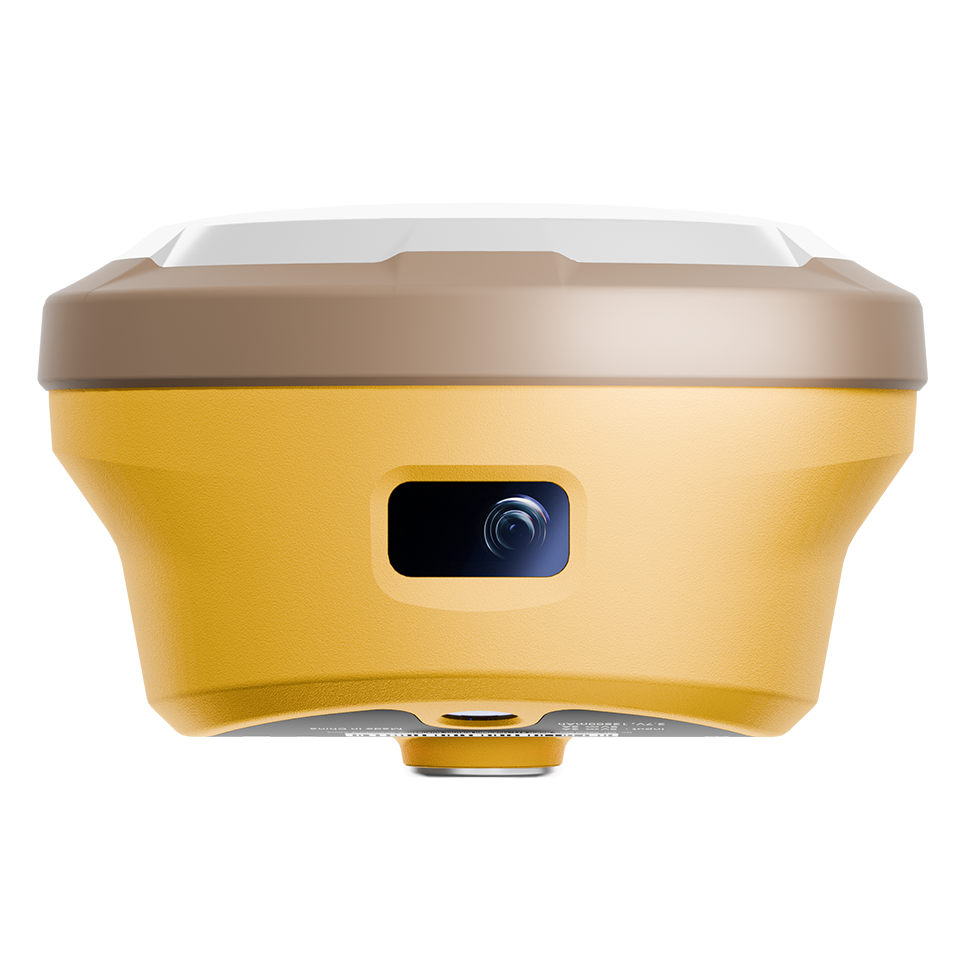

AR Real-scene Stakeout

Professional ultra-wide-angle camera, providing high-definition real-scene staking function, and more convenient real-scene stakeout application, makes your stakeout easier and more intuitive.

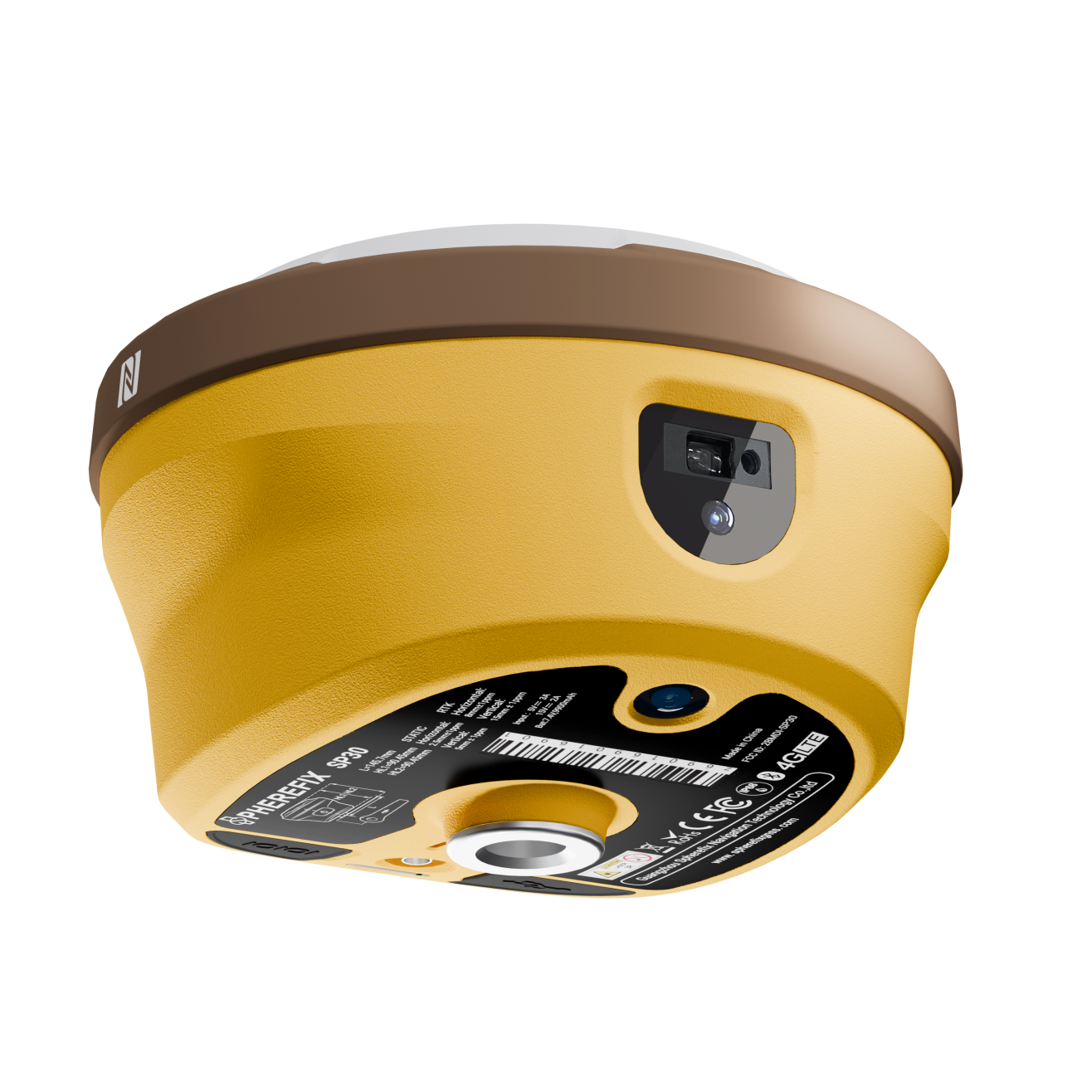

Laser Surveying

SP30 is equipped with a high-precision millimeter-level laser ranging module, integrated with high-precision inertial navigation, to achieve surveying anywhere and better cope with various complex environments.

Ultra-long Endurance

The built-in large-capacity battery enables it to operate continuously for more than 24 hours in the Rover mode.
