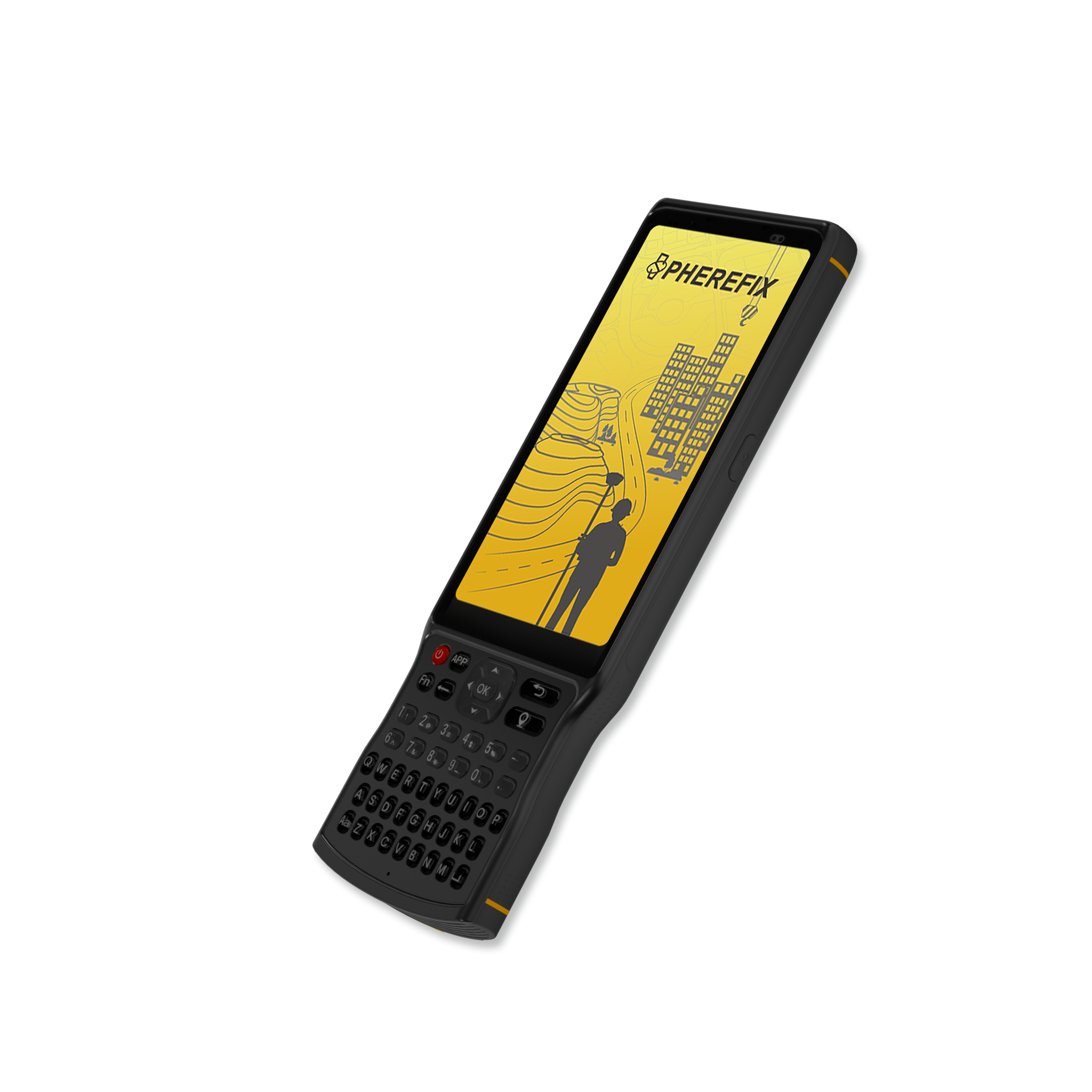

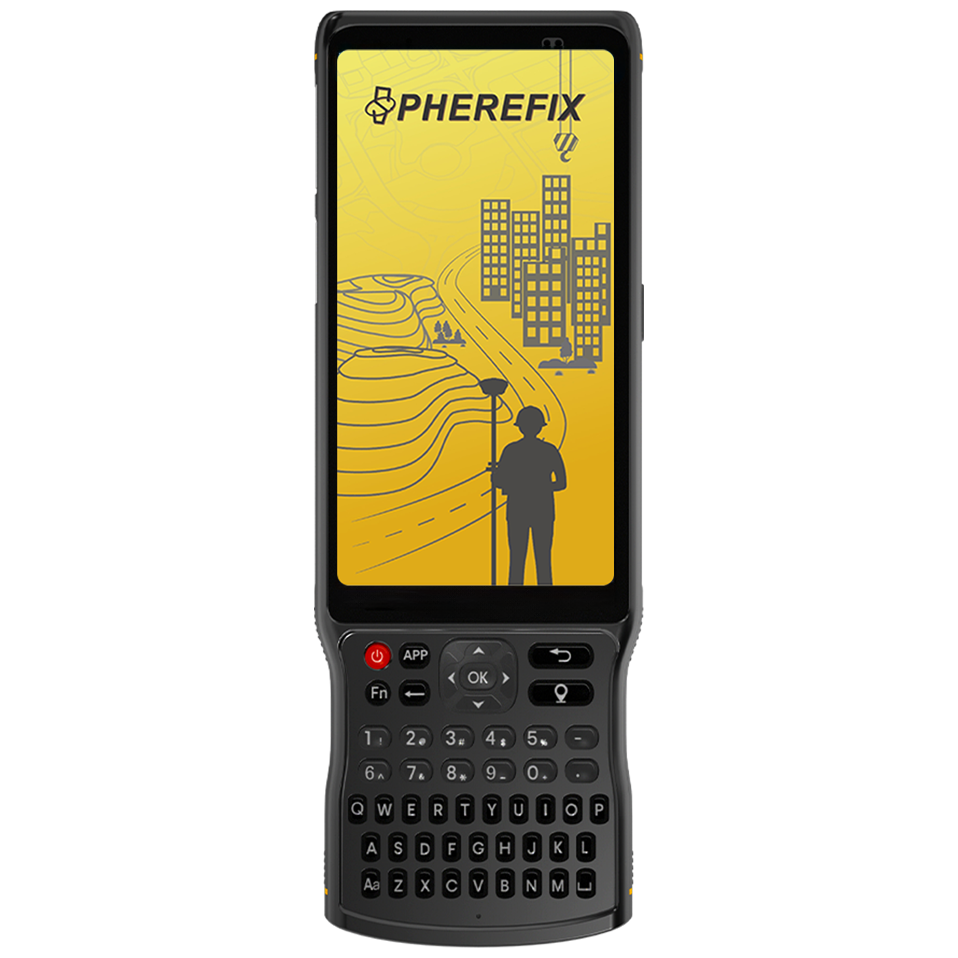

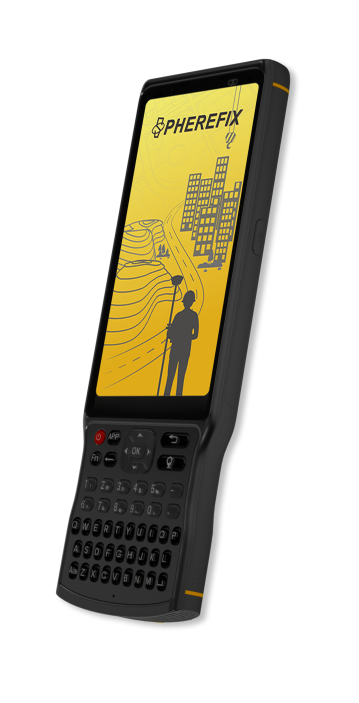

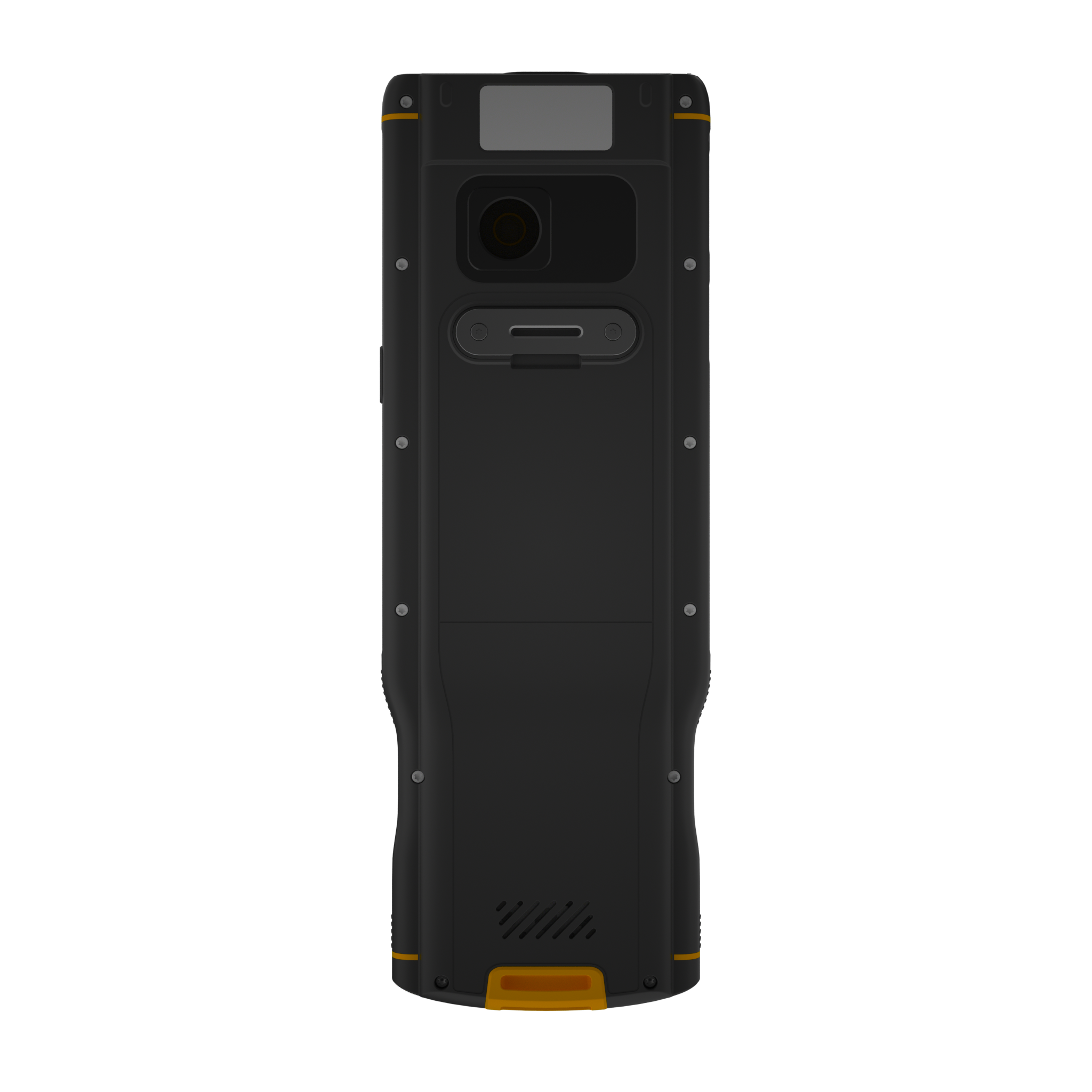

C100T Data Controller

C100T control terminal is a versatile data controller crafted specifically for the surveying sector. It boasts an outstanding battery life of up to 18 hours. Its 5.45-inch display is readable in direct sunlight, and with an IP68 protection rating, it can withstand various harsh outdoor conditions. The powerful 8-core processor and Android 11 operating system ensure that the C100T operates efficiently and smoothly, and it is compatible with multiple measurement software applications, facilitating surveying tasks.

Sunlight-readable Screen

With 5.45 inch high-solution sun-proof screen, you can see clearly in the sun.

Ultra-long Endurance

C100T controller is equipped with a long-life batterey which ensures you a 18h of operation without stopping.

Dual Network Dual Standby

With 4G all netcom communications and dual Sim card option, it can work all day and still remain contactable anytime, anywhere.

High-performance CPU

Eight-core high performance processor enables users to deal with all complicated processing.

SYSTEM

Operating system

Android 11

CPU

8-core 2.0GHz processor

Memory

4GB RAM + 64GB ROM

PHYSICAL PARAMETERS

Display

5.45-inch touch screen, 720*1440px

Camera

13MP rear, Support Flash Light

Interface

Type-C (supports OTG)

DATA COMMUNITATION

Bluetooth | WIFI | Network | GNSS | NFC

ELECTRICAL

Battery

9000mAh (Support Rapid Charging)

Working time

18 hours

Charging time

≤5 hours

PHYSICAL

Dimension(mm)

221*78*16.5

Weight(g)

410.6

ENVIRONMENT

Working Temperature

-20℃~+55℃

Shock

Withstand 1.2M pole drop

Protection

IP68

Detailed Text

C100T Data Controller.pdf

C100T Data Controller User Guide.pdf
