Spherefix GNSS RTK Receiver: 95% Fixed Rate & 50% Faster Surveying for Global Projects

blog

Spherefix GNSS RTK Receiver: A Comprehensive Analysis – The Precision Choice for Global Professional Surveying

6 March 2026

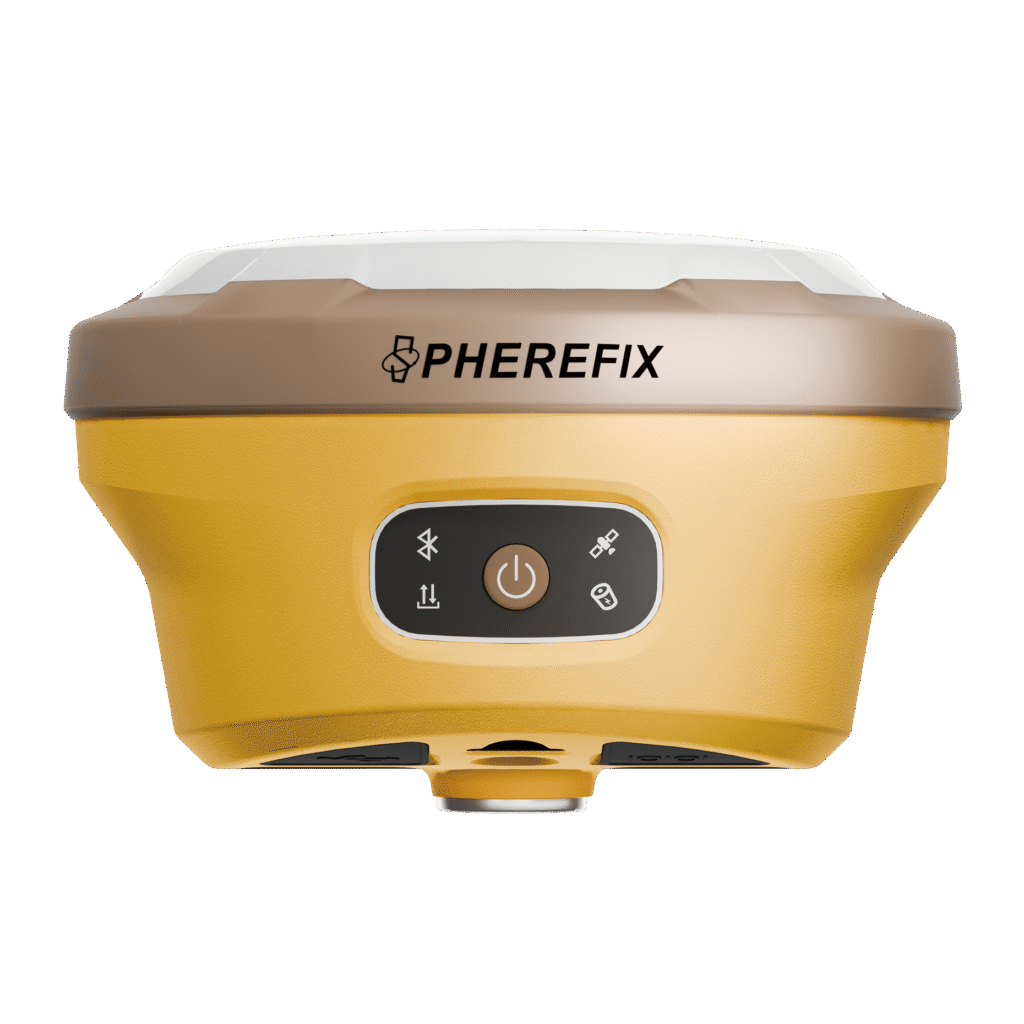

In global professional surveying, where precision defines project success, Real-Time Kinematic (RTK) technology is indispensable. From infrastructure to land management, GNSS RTK receiver reliability directly impacts results. As a global professional-grade provider, Spherefix’s flagship Spherefix GNSS RTK Receiver leads the industry, centered on Europe and America and radiating worldwide. This blog breaks down its core strengths, differences from ordinary models, and real-world applications.

Core Advantages: Precision & Adaptability Redefined

The Spherefix RTK Receiver stands out with four data-backed advantages, trusted by global surveyors.

1. Centimeter-Level Precision

Its horizontal accuracy reaches 8mm + 1ppm, vertical 15mm + 1ppm—far outperforming ordinary RTK receivers (2-5cm drift in complex environments). Equipped with advanced carrier phase difference technology, it maintains stability even for 50km operations without a base station, meeting strict industry standards.

2. Multi-Satellite Coverage

Supporting GPS, GLONASS, Galileo, and BDS with 440 parallel channels, it tracks over 50 satellites in real time. This eliminates blind spots in high-latitude regions and dense forests (e.g., Amazon rainforest), where single-system receivers fail.

3. Anti-Interference & Terrain Adaptability

Built-in AIM+ anti-interference tech and LNA (-148dBm sensitivity) resists radio interference and multi-path effects. In urban canyons, its 78% RTK fixed rate outshines the 45% average of ordinary models, adapting to cities, mountains, and deserts.

4. Lightweight & Durable

Weighing just 1000g (30% lighter than standard models), it boasts 18-hour battery life, IP68 protection, and -40℃ to 85℃ operating range—ideal for extreme environments like the Sahara and Arctic.

Single(RMS): Horizontal: 1.5m; Vertical: 2.5m
DGPS(RMS): Horizontal: 0.4m; Vertical: 0.8m
RTK(RMS): Horizontal: ±(8mm+1ppm); Vertical: ±(15mm+1ppm)
Time Accuracy(RMS): 20ns
Static Accuracy(RMS): Horizontal: ±(2.5mm+1ppm); Vertical: ±(5mm+1ppm)
Speed Accuracy(RMS): 0.03m/s
Tilt compensation Accuracy (within 60°): <2cm
Weight: 1000g

Key Differences from Ordinary RTK Receivers

• Stability: 95% fixed rate in 72-hour Swiss Alps tests (vs. 65% for ordinary models), 60% lower signal loss.
• Global Adaptability: Complies with ISO 17123-8, supports custom coordinate systems, and is certified worldwide for direct local use.
• Software Compatibility: Works seamlessly with Trimble Business Center, AutoCAD Civil 3D, and ArcGIS, exporting multiple data formats.

Practical Global Applications

Proven in key projects worldwide, its performance excels in diverse scenarios.

Road Surveying

Construction

Land Title

1. Europe: Road Surveying (Berlin-Munich Highway)

Completed 120km of surveying in 15 days with 0.8cm average error, 50% more efficient than ordinary RTK, solving forest signal occlusion.

2. Asia-Pacific: Construction (Singapore Commercial Complex)

92% fixed rate in urban high-rises, 300+ foundation points set out in 7 days, 80% lower rework rate.

3. Latin America: Land Title (Brazil São Paulo)

Demarcated 2000 hectares in 20 days (±1cm accuracy), 40% efficiency boost, lightweight design ideal for remote areas.

Elevate Your Surveying Projects

The Spherefix GNSS RTK Receiver is the top choice for global professionals. Learn its full parameters and regional quotes at www.spherefixgnss.com or contact our global support.
